Product Description

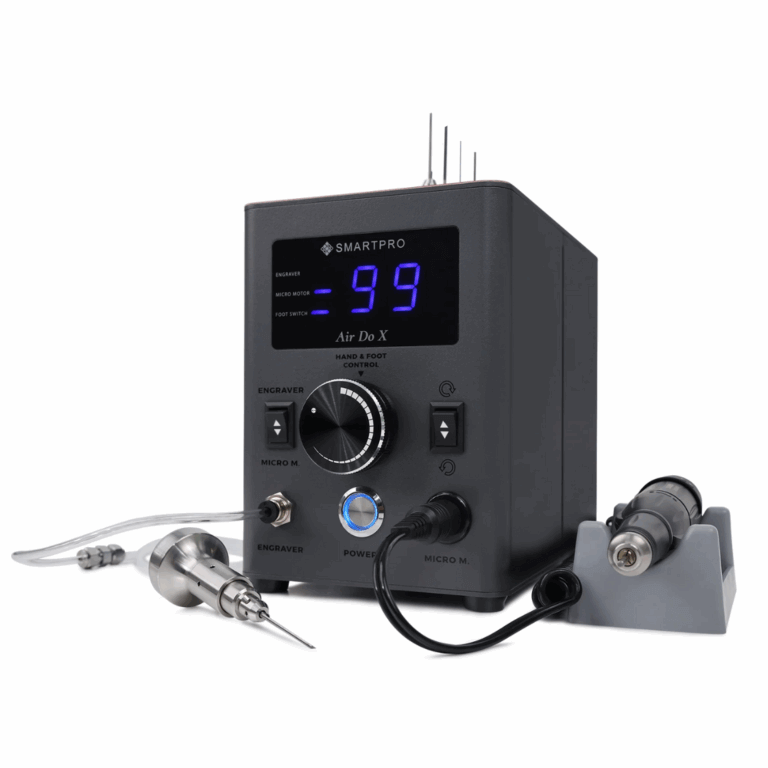

The SmartPro Air Do X is a complete package for Jewellers & Jewellery Designers. The Air Do X is ideal for stone setting, engraving, drilling, polishing, buffing, lapping & much more due to the 2-in-1 technology of an engraver & micro motor. This system comes with a powerful engraving stroke that stats from 240SPM & high precision micro motor speed up to 35000 RPM. This system’s speed can be controlled automatically by a control knob or foot control.
Features
- Precise Pneumatic system with Micromotor hand & Foot Control
- Ideal for setting, engraving, drilling, hammering, polishing, buffing, outlining & undercut inlay, lapping, stippling, & shading.
- Dot Punch & background removal
- No External compressor is required
- Overload protection

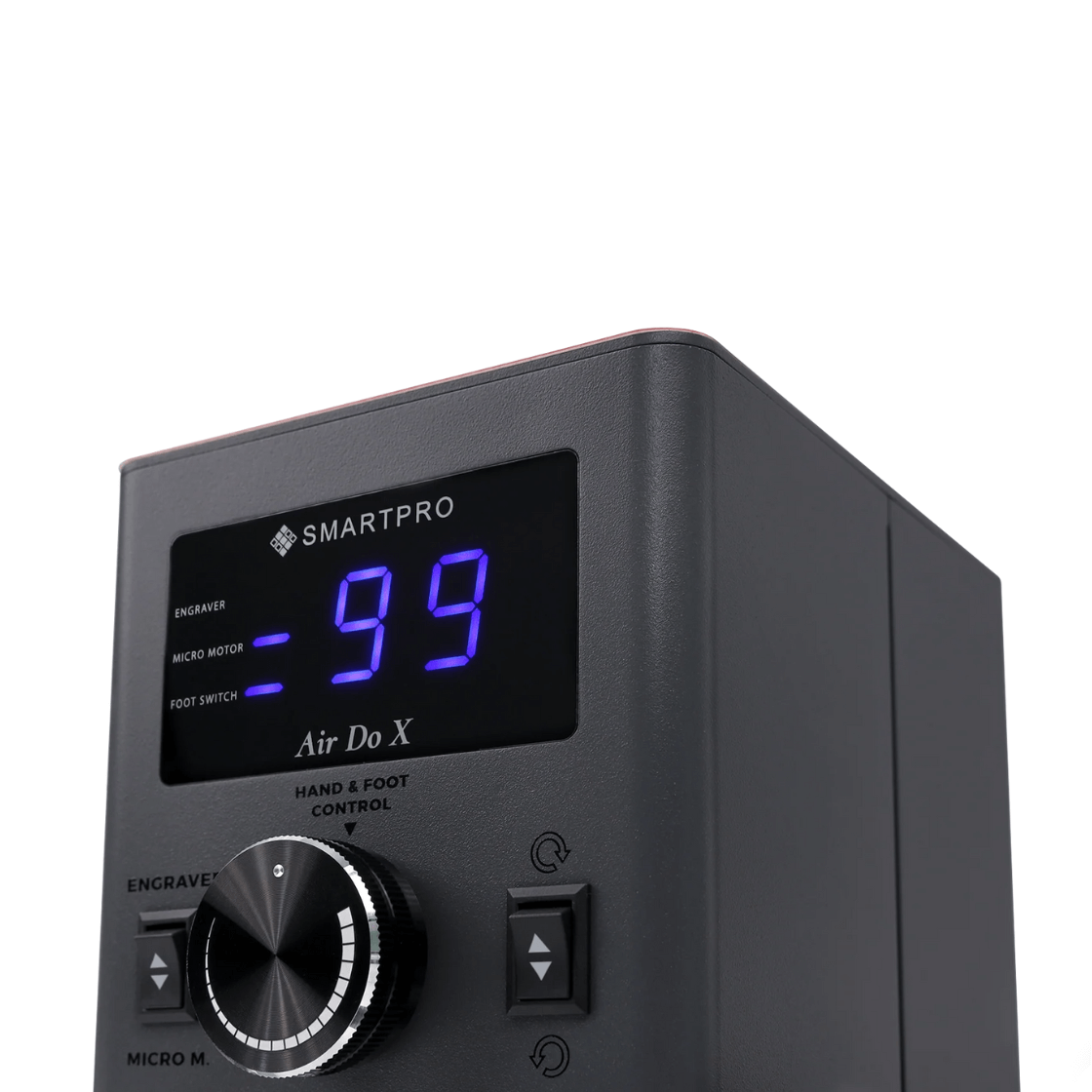

- Digital LED display
- LED indicator for tool selection & speed control
Benefits
- Space saver & easy to operate
- Powerful strokes start from 240 SPM
- Affordable & Compact system to unleash inner creativity
- Reliable & ultra-durable for all work environments
Power / Battery & Included Accessories
- Power Supply: 100-240 VAC, 4.2A
- Power Fuse: 4.2A
- Power Cable Type: IEC C13
- SmartPro Air Do X Control Box

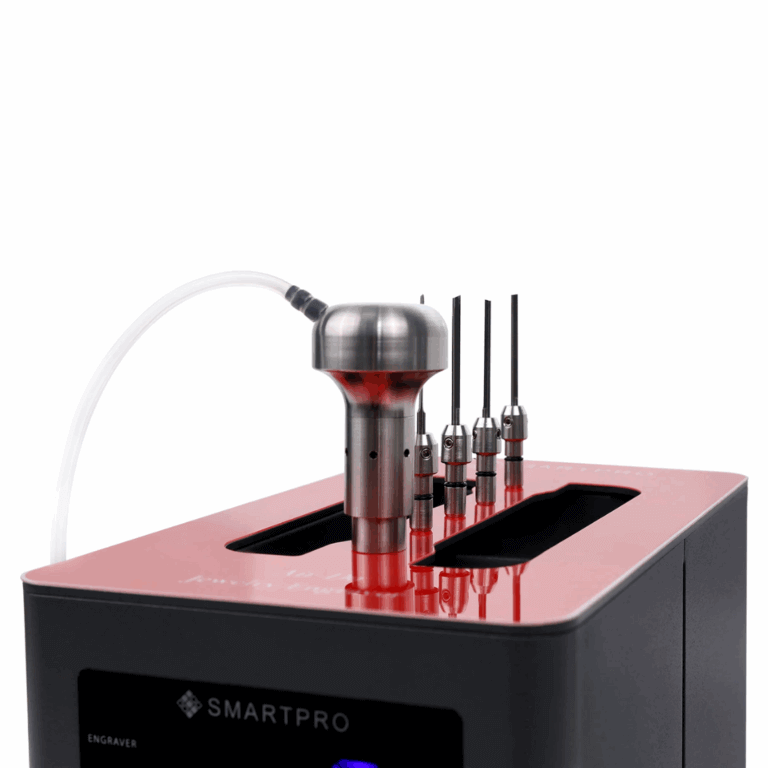

- Engraver Handpiece Set SPH3
- 6 Pcs Carbon Engraver
- 3 pcs collet of 2.5 mm
- 3 pcs collet of 3.5 mm
- Micro Motor Handpiece 35000 RPM
- Micro Motor handpiece Stand
- Foot Pedal Controller
- Power Cable or AC power cable
- User manual book
- Warranty card
Dimensions & Weight
- Length: 240 mm
- Width: 130 mm
- Height: 185 mm
- Weight: 5.0 Kg
Operating Conditions
- Operating temperature: 0° – 35°C (32° – 95°F)
- Storage temperature: -20° – 45°C (-4° – 113°F)
Technical Specifications
- Brand- SmartPro
- Body Color- Gray
- Power input- 100-240 VAC 4.2 A 50/60 Hz
- Graver Speed- 0-60%
- Graver Strokes- 240 to 2400
- Micro Motor speed- 35000 RPM
- Micro Motor Torque 2.8N.cm
- Packaging Box- 37(W) X 29 (L) 31.5 (H) Cm
- Gross Weight- 9 Kg
- Ventilation Requirements: Do not obstruct the ventilation holes
